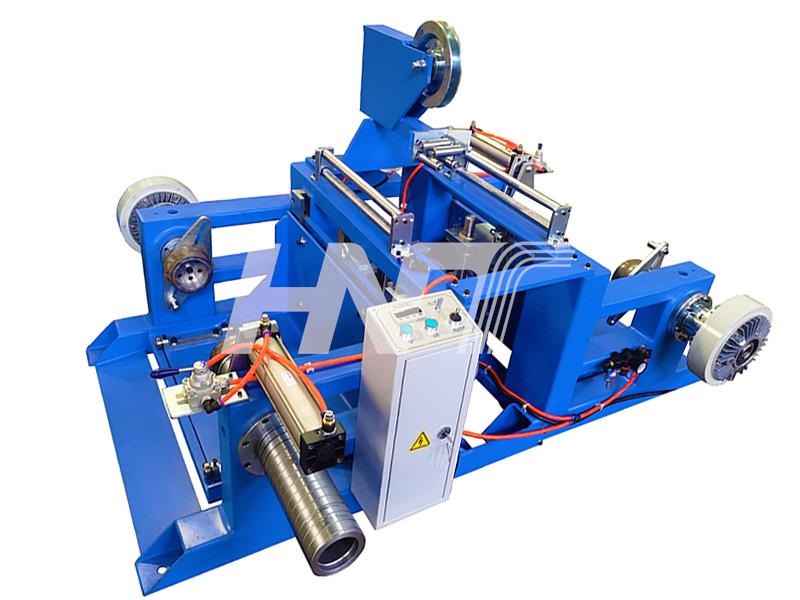

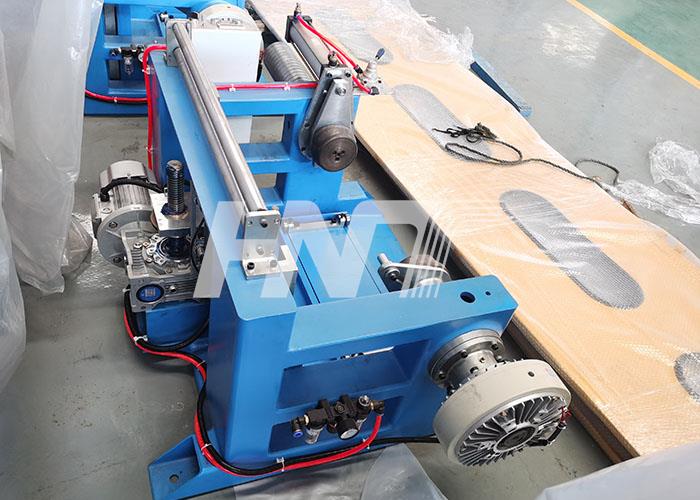

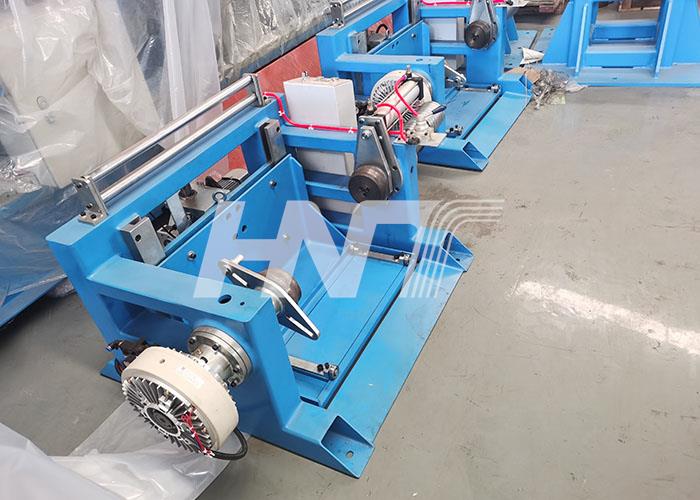

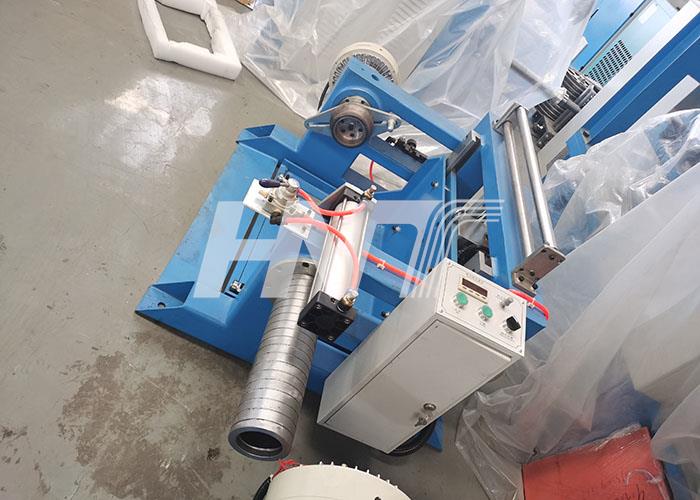

φ630mm Magnetic passive double reel pay-off
1. Machine can connect with the extrusion line or cable coiling and packing machine;
2. Machine type: Shaftless;
3. Application Bobbin:φ630mm;
4. Lifting Method: AC Geared motor +Screw lift;
5. Pintle Clamping type: by pneumatic;
6. Magnetic control to stop wire payoff.
Single Pay-off Specification
Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
Double Reel Pay-off Specification
Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PFS-630M | 400 - 630 | 300 - 475 | 600 |
PFS-800M | 630 - 800 | 475 - 600 | 1000 |
PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
