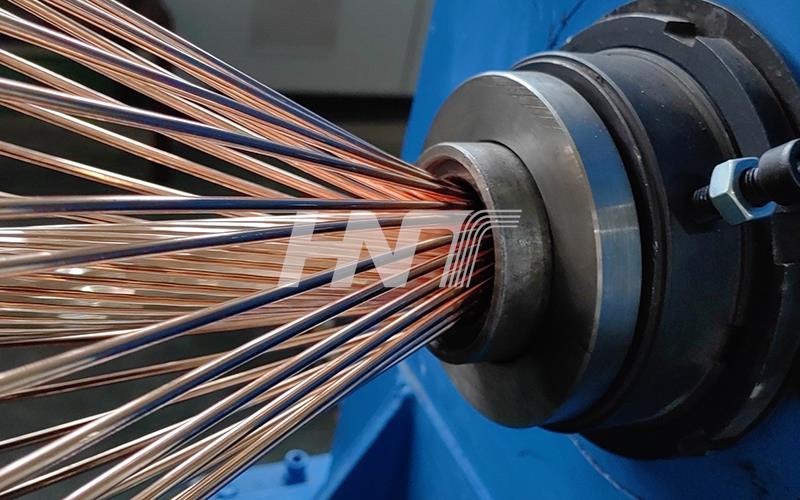

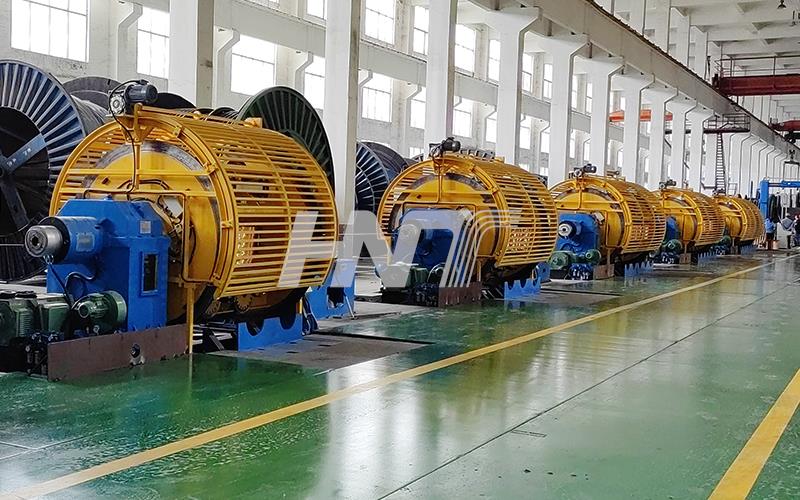

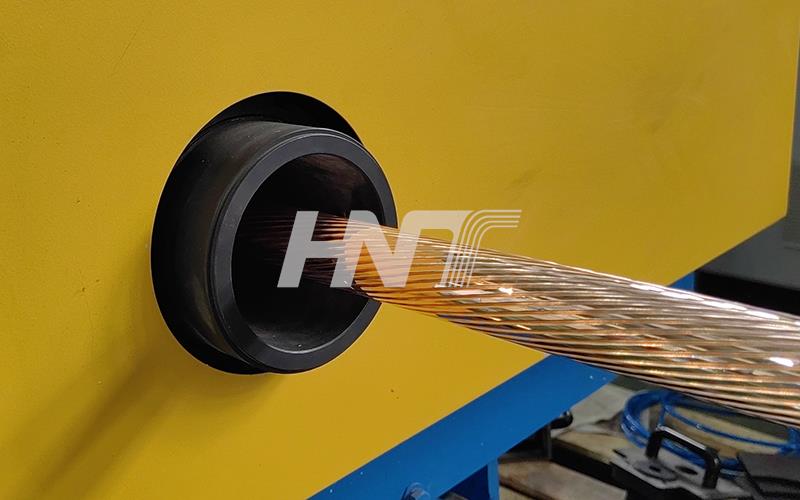

Rigid Stranding Machine
Main Features:
1. The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.
2. Each stranding cage is individually driven by a motor, which is independently controlled, with rotating speed separately adjusted, through toothed pulley.
3. Provided with batch loader to load and unload the bobbins altogether.
4. Equipped with constant tension control system and intelligent brake system.
Main Technical Date:
Machine Model | 500, 630, 710, 800 bobbin | |
Diameter Of Single Wire | Copper | Φ1.5～Φ4.5mm |
Aluminium | Φ1.8～Φ5.0mm | |
Aluminum Alloy | Φ1.5～Φ4.5mm | |
Cage Rotating Speed | 6 Bobbin | 220RPM |
12 Bobbin | 200RPM | |
18 Bobbin | 190 RPM | |
24 Bobbin | 170 RPM | |
30 Bobbin | 140 RPM | |
36 Bobbin | 120 RPM | |
42 Bobbin | 100 RPM | |
Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm | |
Lay length | Steplessly Adjustable | |
Bobbin Size in Stranding Cage | PND500, PND630, PND710, | |
Dual Wheel Capstan | 2000mm to 3200mm | |

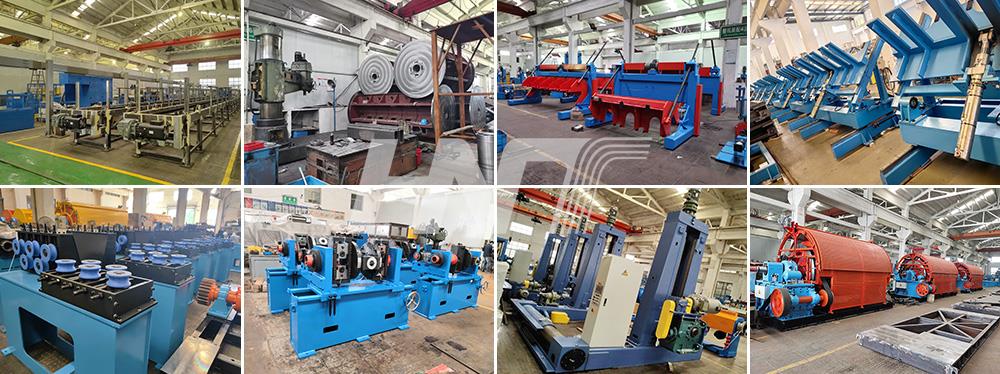

Production Workshop:

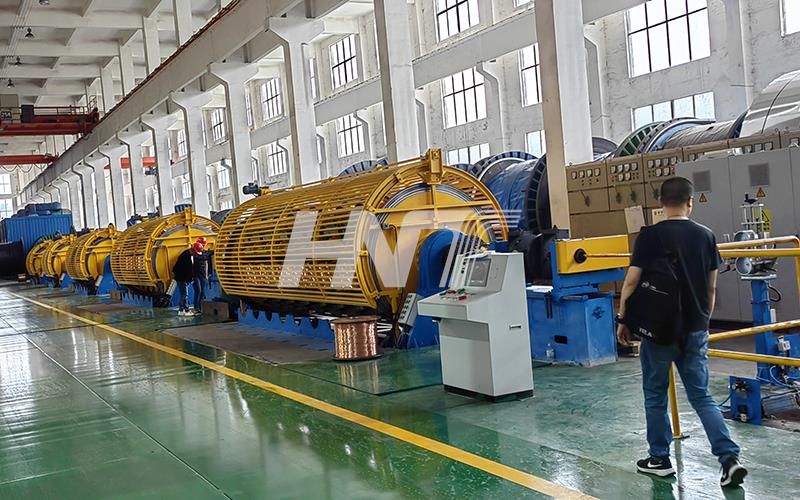

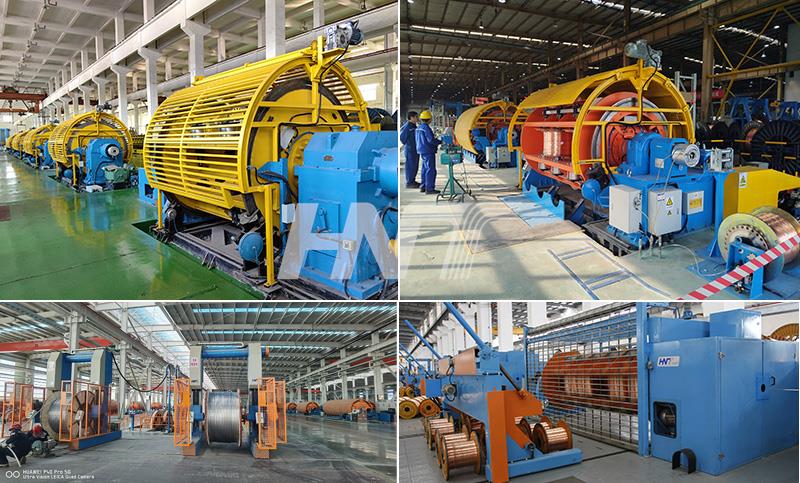

Rigid Strander Line In Operation:
Our Customers:
